Attach Calculation
Subscript, superscripts, and limits.
Attachments can be displayed either as sub/superscripts, or limits. Typst
automatically decides which is more suitable depending on the base, but you
can also control this manually with the scripts
and limits
functions.
If you want the base to stretch to fit long top and bottom attachments (for
example, an arrow with text above it), use the stretch
function.
Example

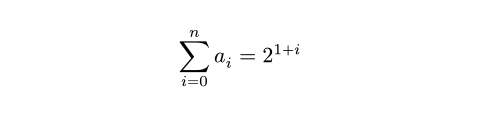

$ sum_(i=0)^n a_i = 2^(1+i) $
Syntax
This function also has dedicated syntax for attachments after the base: Use
the underscore (_
) to indicate a subscript i.e. bottom attachment and the
hat (^
) to indicate a superscript i.e. top attachment.
Calculation
attach
A base with optional attachments.

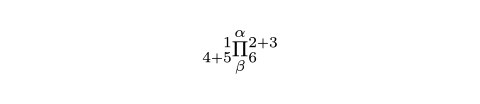

$ attach(
Pi, t: alpha, b: beta,
tl: 1, tr: 2+3, bl: 4+5, br: 6,
) $
base
The base to which things are attached.
t
The top attachment, smartly positioned at top-right or above the base.
You can wrap the base in limits()
or scripts()
to override the
smart positioning.
Default:none
b
The bottom attachment, smartly positioned at the bottom-right or below the base.
You can wrap the base in limits()
or scripts()
to override the
smart positioning.
Default:none
tl
The top-left attachment (before the base).
Default:none
bl
The bottom-left attachment (before base).
Default:none
tr
The top-right attachment (after the base).
Default:none
br
The bottom-right attachment (after the base).
Default:none
scripts
Forces a base to display attachments as scripts.

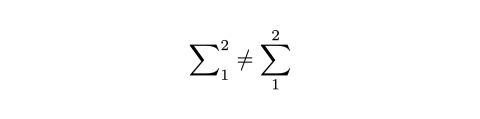

$ scripts(sum)_1^2 != sum_1^2 $
body
The base to attach the scripts to.
limits
Forces a base to display attachments as limits.

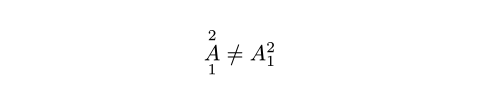

$ limits(A)_1^2 != A_1^2 $
body
The base to attach the limits to.
inline
Settable
Settable parameters can be customized for all following uses of the function with a set
rule.
set
rule.Whether to also force limits in inline equations.
When applying limits globally (e.g., through a show rule), it is typically a good idea to disable this.
Default:true
