xml
Reads structured data from an XML file.
The XML file is parsed into an array of dictionaries and strings. XML nodes can be elements or strings. Elements are represented as dictionaries with the following keys:
tag
: The name of the element as a string.attrs
: A dictionary of the element's attributes as strings.children
: An array of the element's child nodes.
The XML file in the example contains a root news
tag with multiple
article
tags. Each article has a title
, author
, and content
tag. The
content
tag contains one or more paragraphs, which are represented as p
tags.

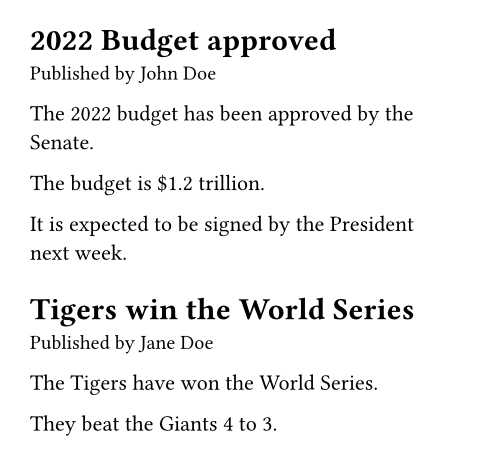

Example
#let find-child(elem, tag) = {
elem.children
.find(e => "tag" in e and e.tag == tag)
}
#let article(elem) = {
let title = find-child(elem, "title")
let author = find-child(elem, "author")
let pars = find-child(elem, "content")
heading(title.children.first())
text(10pt, weight: "medium")[
Published by
#author.children.first()
]
for p in pars.children {
if (type(p) == "dictionary") {
parbreak()
p.children.first()
}
}
}
#let data = xml("example.xml")
#for elem in data.first().children {
if (type(elem) == "dictionary") {
article(elem)
}
}
Parameters
Parameters are the inputs to a function. They are specified in parentheses after the function name.
Parameters are the inputs to a function. They are specified in parentheses after the function name.
path
Path to an XML file.
For more details, see the Paths section.
Definitions
Functions and types and can have associated definitions. These are accessed by specifying the function or type, followed by a period, and then the definition's name.
Functions and types and can have associated definitions. These are accessed by specifying the function or type, followed by a period, and then the definition's name.
decode
Reads structured data from an XML string/bytes.
data
XML data.
