ellipse
Element
Element functions can be customized with set
and show
rules.
Element functions can be customized with
set
and show
rules.An ellipse with optional content.

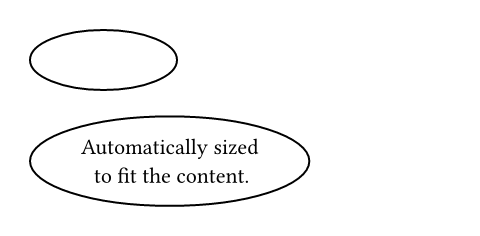

Example
// Without content.
#ellipse(width: 35%, height: 30pt)
// With content.
#ellipse[
#set align(center)
Automatically sized \
to fit the content.
]
Parameters
Parameters are the inputs to a function. They are specified in parentheses after the function name.
Parameters are the inputs to a function. They are specified in parentheses after the function name.
ellipse(
width: autorelative, height: autorelativefraction, fill: nonecolorgradientpattern, stroke: noneautolengthcolorgradientstrokepatterndictionary, inset: relativedictionary, outset: relativedictionary, nonecontent,
) -> contentwidth
The ellipse's width, relative to its parent container.
Default:auto
height
The ellipse's height, relative to its parent container.
Default:auto
fill
How to fill the ellipse. See the rectangle's documentation for more details.
Default:none
stroke
How to stroke the ellipse. See the rectangle's documentation for more details.
Default:auto
inset
Settable
Settable parameters can be customized for all following uses of the function with a set
rule.
Settable parameters can be customized for all following uses of the function with a
set
rule.How much to pad the ellipse's content. See the box's documentation for more details.
Default:0% + 5pt
outset
Settable
Settable parameters can be customized for all following uses of the function with a set
rule.
Settable parameters can be customized for all following uses of the function with a
set
rule.How much to expand the ellipse's size without affecting the layout. See the box's documentation for more details.
Default:(:)
body
The content to place into the ellipse.
When this is omitted, the ellipse takes on a default size of at most
45pt
by 30pt
.
Default:none
