tiling

A repeating tiling fill.

Typst supports the most common type of tilings, where a pattern is repeated in a grid-like fashion, covering the entire area of an element that is filled or stroked. The pattern is defined by a tile size and a body defining the content of each cell. You can also add horizontal or vertical spacing between the cells of the tiling.

Examples

#let pat = tiling(size: (30pt, 30pt))[
  #place(line(start: (0%, 0%), end: (100%, 100%)))
  #place(line(start: (0%, 100%), end: (100%, 0%)))
]

#rect(fill: pat, width: 100%, height: 60pt, stroke: 1pt)

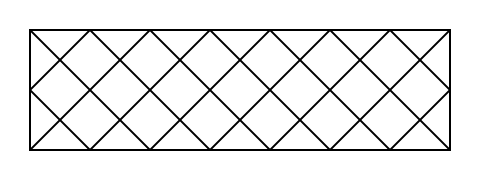

Preview

Tilings are also supported on text, but only when setting the relativeness to either auto (the default value) or "parent". To create word-by-word or glyph-by-glyph tilings, you can wrap the words or characters of your text in boxes manually or through a show rule.

#let pat = tiling(
  size: (30pt, 30pt),
  relative: "parent",
  square(
    size: 30pt,
    fill: gradient
      .conic(..color.map.rainbow),
  )
)

#set text(fill: pat)
#lorem(10)

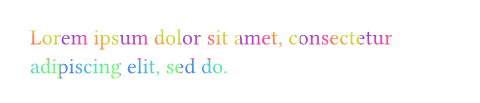

Preview

You can also space the elements further or closer apart using the spacing feature of the tiling. If the spacing is lower than the size of the tiling, the tiling will overlap. If it is higher, the tiling will have gaps of the same color as the background of the tiling.

#let pat = tiling(
  size: (30pt, 30pt),
  spacing: (10pt, 10pt),
  relative: "parent",
  square(
    size: 30pt,
    fill: gradient
     .conic(..color.map.rainbow),
  ),
)

#rect(
  width: 100%,
  height: 60pt,
  fill: pat,
)

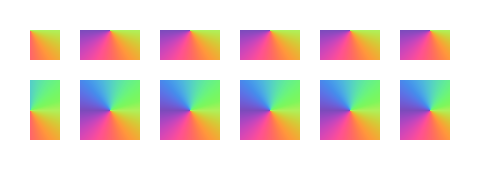

Preview

Relativeness

The location of the starting point of the tiling is dependent on the dimensions of a container. This container can either be the shape that it is being painted on, or the closest surrounding container. This is controlled by the relative argument of a tiling constructor. By default, tilings are relative to the shape they are being painted on, unless the tiling is applied on text, in which case they are relative to the closest ancestor container.

Typst determines the ancestor container as follows:

  • For shapes that are placed at the root/top level of the document, the closest ancestor is the page itself.
  • For other shapes, the ancestor is the innermost block or box that contains the shape. This includes the boxes and blocks that are implicitly created by show rules and elements. For example, a rotate will not affect the parent of a gradient, but a grid will.

Compatibility

This type used to be called pattern. The name remains as an alias, but is deprecated since Typst 0.13.

コンストラクタ
ヘルプアイコン

Construct a new tiling.

#let pat = tiling(
  size: (20pt, 20pt),
  relative: "parent",
  place(
    dx: 5pt,
    dy: 5pt,
    rotate(45deg, square(
      size: 5pt,
      fill: black,
    )),
  ),
)

#rect(width: 100%, height: 60pt, fill: pat)
Preview

size

The bounding box of each cell of the tiling.

デフォルト値:

auto

spacing

The spacing between cells of the tiling.

デフォルト値:

(0pt, 0pt)

relative

The relative placement of the tiling.

For an element placed at the root/top level of the document, the parent is the page itself. For other elements, the parent is the innermost block, box, column, grid, or stack that contains the element.

使用可能な文字列値:
  • self

    The gradient is relative to itself (its own bounding box).

  • parent

    The gradient is relative to its parent (the parent's bounding box).

デフォルト値:

auto

body
Required
ヘルプアイコン
Positional
ヘルプアイコン

The content of each cell of the tiling.
