skew
Element
Element functions can be customized with set and show rules.
Element functions can be customized with
set and show rules.Skews content.
Skews an element in horizontal and/or vertical direction. The layout will
act as if the element was not skewed unless you specify reflow: true.
Example
#skew(ax: -12deg)[
This is some fake italic text.
]
引数
Parameters are the inputs to a function. They are specified in parentheses after the function name.
Parameters are the inputs to a function. They are specified in parentheses after the function name.
ax
Settable
Settable parameters can be customized for all following uses of the function with a set rule.
Settable parameters can be customized for all following uses of the function with a
set rule.The horizontal skewing angle.
Default:0deg
View example
#skew(ax: 30deg)[Skewed]
ay
Settable
Settable parameters can be customized for all following uses of the function with a set rule.
Settable parameters can be customized for all following uses of the function with a
set rule.The vertical skewing angle.
Default:0deg
View example
#skew(ay: 30deg)[Skewed]
origin
Settable
Settable parameters can be customized for all following uses of the function with a set rule.
Settable parameters can be customized for all following uses of the function with a
set rule.The origin of the skew transformation.
The origin will stay fixed during the operation.
Default:center + horizon
View example

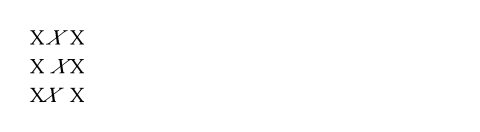

X #box(skew(ax: -30deg, origin: center + horizon)[X]) X \
X #box(skew(ax: -30deg, origin: bottom + left)[X]) X \
X #box(skew(ax: -30deg, origin: top + right)[X]) X
reflow
Settable
Settable parameters can be customized for all following uses of the function with a set rule.
Settable parameters can be customized for all following uses of the function with a
set rule.Whether the skew transformation impacts the layout.
If set to false, the skewed content will retain the bounding box of
the original content. If set to true, the bounding box will take the
transformation of the content into account and adjust the layout accordingly.
Default:false
View example

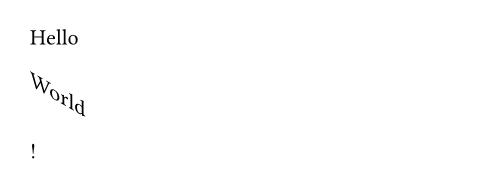

Hello #skew(ay: 30deg, reflow: true, "World")!
body
The content to skew.
