• Vector

vec Element

Element functions can be customized with set and show rules.

A column vector.

Content in the vector's elements can be aligned with the align parameter, or the & symbol.

Example

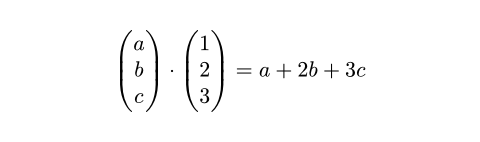

$ vec(a, b, c) dot vec(1, 2, 3)
    = a + 2b + 3c $

引数

Parameters are the inputs to a function. They are specified in parentheses after the function name.

delim

none str array symbol

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

The delimiter to use.

Can be a single character specifying the left delimiter, in which case the right delimiter is inferred. Otherwise, can be an array containing a left and a right delimiter.

Default:("(", ")")

View example

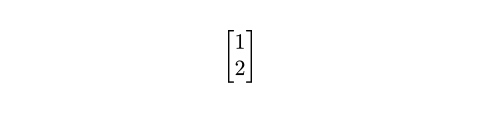

#set math.vec(delim: "[")

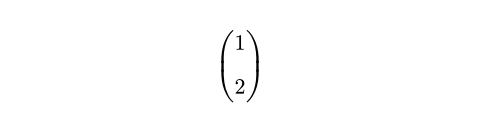

$ vec(1, 2) $

align

alignment

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

The horizontal alignment that each element should have.

Default:center

View example

#set math.vec(align: right)
$ vec(-1, 1, -1) $

gap

relative

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

The gap between elements.

Default:0% + 0.2em

View example

#set math.vec(gap: 1em)
$ vec(1, 2) $

children

content

RequiredPositional

Positional parameters are specified in order, without names.

Variadic

Variadic parameters can be specified multiple times.

The elements of the vector.
