stroke

Defines how to draw a line.

A stroke has a paint (a solid color or gradient), a thickness, a line cap, a line join, a miter limit, and a dash pattern. All of these values are optional and have sensible defaults.

Example

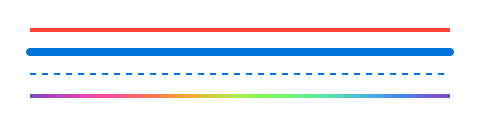

#set line(length: 100%)
#stack(
  spacing: 1em,
  line(stroke: 2pt + red),
  line(stroke: (paint: blue, thickness: 4pt, cap: "round")),
  line(stroke: (paint: blue, thickness: 1pt, dash: "dashed")),
  line(stroke: 2pt + gradient.linear(..color.map.rainbow)),
)
Preview

Simple strokes

You can create a simple solid stroke from a color, a thickness, or a combination of the two. Specifically, wherever a stroke is expected you can pass any of the following values:

  • A length specifying the stroke's thickness. The color is inherited, defaulting to black.
  • A color to use for the stroke. The thickness is inherited, defaulting to 1pt.
  • A stroke combined from color and thickness using the + operator as in 2pt + red.

For full control, you can also provide a dictionary or a stroke object to any function that expects a stroke. The dictionary's keys may include any of the parameters for the constructor function, shown below.

Fields

On a stroke object, you can access any of the fields listed in the constructor function. For example, (2pt + blue).thickness is 2pt. Meanwhile, stroke(red).cap is auto because it's unspecified. Fields set to auto are inherited.

コンストラクタ
ヘルプアイコン

Converts a value to a stroke or constructs a stroke with the given parameters.

Note that in most cases you do not need to convert values to strokes in order to use them, as they will be converted automatically. However, this constructor can be useful to ensure a value has all the fields of a stroke.

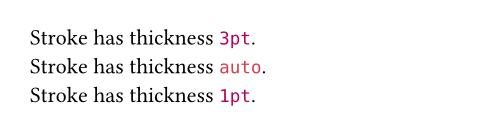

#let my-func(x) = {
    x = stroke(x) // Convert to a stroke
    [Stroke has thickness #x.thickness.]
}
#my-func(3pt) \
#my-func(red) \
#my-func(stroke(cap: "round", thickness: 1pt))
Preview

paint
Required
ヘルプアイコン
Positional
ヘルプアイコン

The color or gradient to use for the stroke.

If set to auto, the value is inherited, defaulting to black.

thickness
Required
ヘルプアイコン
Positional
ヘルプアイコン

The stroke's thickness.

If set to auto, the value is inherited, defaulting to 1pt.

cap
Required
ヘルプアイコン
Positional
ヘルプアイコン

How the ends of the stroke are rendered.

If set to auto, the value is inherited, defaulting to "butt".

使用可能な文字列値:
  • butt

    Square stroke cap with the edge at the stroke's end point.

  • round

    Circular stroke cap centered at the stroke's end point.

  • square

    Square stroke cap centered at the stroke's end point.

join
Required
ヘルプアイコン
Positional
ヘルプアイコン

How sharp turns are rendered.

If set to auto, the value is inherited, defaulting to "miter".

使用可能な文字列値:
  • miter

    Segments are joined with sharp edges. Sharp bends exceeding the miter limit are bevelled instead.

  • round

    Segments are joined with circular corners.

  • bevel

    Segments are joined with a bevel (a straight edge connecting the butts of the joined segments).

dash
Required
ヘルプアイコン
Positional
ヘルプアイコン

The dash pattern to use. This can be:

  • One of the predefined patterns:
    • "solid" or none
    • "dotted"
    • "densely-dotted"
    • "loosely-dotted"
    • "dashed"
    • "densely-dashed"
    • "loosely-dashed"
    • "dash-dotted"
    • "densely-dash-dotted"
    • "loosely-dash-dotted"
  • An array with alternating lengths for dashes and gaps. You can also use the string "dot" for a length equal to the line thickness.
  • A dictionary with the keys array (same as the array above), and phase (of type length), which defines where in the pattern to start drawing.

If set to auto, the value is inherited, defaulting to none.

使用可能な文字列値:
  • solid
  • dotted
  • densely-dotted
  • loosely-dotted
  • dashed
  • densely-dashed
  • loosely-dashed
  • dash-dotted
  • densely-dash-dotted
  • loosely-dash-dotted
右矢印アイコン
例を表示

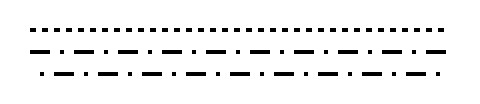

#set line(length: 100%, stroke: 2pt)
#stack(
  spacing: 1em,
  line(stroke: (dash: "dashed")),
  line(stroke: (dash: (10pt, 5pt, "dot", 5pt))),
  line(stroke: (dash: (array: (10pt, 5pt, "dot", 5pt), phase: 10pt))),
)
Preview

miter-limit
Required
ヘルプアイコン
Positional
ヘルプアイコン

Number at which protruding sharp bends are rendered with a bevel instead or a miter join. The higher the number, the sharper an angle can be before it is bevelled. Only applicable if join is "miter".

Specifically, the miter limit is the maximum ratio between the corner's protrusion length and the stroke's thickness.

If set to auto, the value is inherited, defaulting to 4.0.

右矢印アイコン
例を表示
#let items = (
  curve.move((15pt, 0pt)),
  curve.line((0pt, 30pt)),
  curve.line((30pt, 30pt)),
  curve.line((10pt, 20pt)),
)

#set curve(stroke: 6pt + blue)
#stack(
  dir: ltr,
  spacing: 1cm,
  curve(stroke: (miter-limit: 1), ..items),
  curve(stroke: (miter-limit: 4), ..items),
  curve(stroke: (miter-limit: 5), ..items),
)
Preview
