curveElementElementElement functions can be customized with set and show rules.
set and show rules.A curve consisting of movements, lines, and Bézier segments.
At any point in time, there is a conceptual pen or cursor.
- Move elements move the cursor without drawing.
- Line/Quadratic/Cubic elements draw a segment from the cursor to a new position, potentially with control point for a Bézier curve.
- Close elements draw a straight or smooth line back to the start of the curve or the latest preceding move segment.
For layout purposes, the bounding box of the curve is a tight rectangle
containing all segments as well as the point (0pt, 0pt).
Positions may be specified absolutely (i.e. relatively to (0pt, 0pt)),
or relative to the current pen/cursor position, that is, the position where
the previous segment ended.
Bézier curve control points can be skipped by passing none or
automatically mirrored from the preceding segment by passing auto.

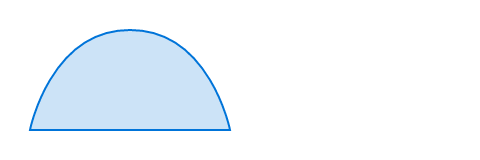

Example
#curve(
fill: blue.lighten(80%),
stroke: blue,
curve.move((0pt, 50pt)),
curve.line((100pt, 50pt)),
curve.cubic(none, (90pt, 0pt), (50pt, 0pt)),
curve.close(),
)
引数ParametersParameters are the inputs to a function. They are specified in parentheses after the function name.
fill
How to fill the curve.
When setting a fill, the default stroke disappears. To create a rectangle with both fill and stroke, you have to configure both.
デフォルト値: none
fill-ruleSettableSettableSettable parameters can be customized for all following uses of the function with a set rule.
set rule.The drawing rule used to fill the curve.
使用可能な文字列値:
non-zeroSpecifies that "inside" is computed by a non-zero sum of signed edge crossings.
even-oddSpecifies that "inside" is computed by an odd number of edge crossings.
デフォルト値: "non-zero"

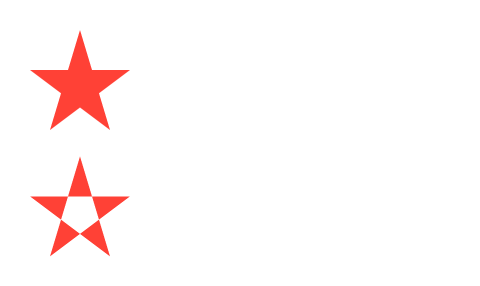

例を表示
// We use `.with` to get a new
// function that has the common
// arguments pre-applied.
#let star = curve.with(
fill: red,
curve.move((25pt, 0pt)),
curve.line((10pt, 50pt)),
curve.line((50pt, 20pt)),
curve.line((0pt, 20pt)),
curve.line((40pt, 50pt)),
curve.close(),
)
#star(fill-rule: "non-zero")
#star(fill-rule: "even-odd")
stroke
How to stroke the curve. This can be:
Can be set to none to disable the stroke or to auto for a
stroke of 1pt black if and if only if no fill is given.
デフォルト値: auto
例を表示
#let down = curve.line((40pt, 40pt), relative: true)
#let up = curve.line((40pt, -40pt), relative: true)
#curve(
stroke: 4pt + gradient.linear(red, blue),
down, up, down, up, down,
)
componentsRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters are specified in order, without names.VariadicVariadicVariadic parameters can be specified multiple times.
The components of the curve, in the form of moves, line and Bézier segment, and closes.
定義DefinitionsFunctions and types and can have associated definitions. These are accessed by specifying the function or type, followed by a period, and then the definition's name.
moveElementElementElement functions can be customized with set and show rules.
set and show rules.Starts a new curve component.
If no curve.move element is passed, the curve will start at
(0pt, 0pt).

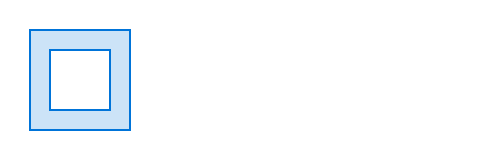

例を表示
#curve(
fill: blue.lighten(80%),
fill-rule: "even-odd",
stroke: blue,
curve.line((50pt, 0pt)),
curve.line((50pt, 50pt)),
curve.line((0pt, 50pt)),
curve.close(),
curve.move((10pt, 10pt)),
curve.line((40pt, 10pt)),
curve.line((40pt, 40pt)),
curve.line((10pt, 40pt)),
curve.close(),
)
startRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters are specified in order, without names.
The starting point for the new component.
relativeSettableSettableSettable parameters can be customized for all following uses of the function with a set rule.
set rule.Whether the coordinates are relative to the previous point.
デフォルト値: false
lineElementElementElement functions can be customized with set and show rules.
set and show rules.Adds a straight line from the current point to a following one.

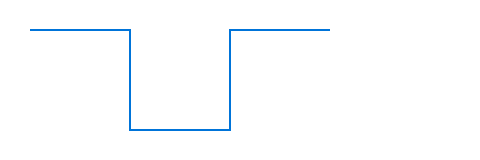

例を表示
#curve(
stroke: blue,
curve.line((50pt, 0pt)),
curve.line((50pt, 50pt)),
curve.line((100pt, 50pt)),
curve.line((100pt, 0pt)),
curve.line((150pt, 0pt)),
)
endRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters are specified in order, without names.
The point at which the line shall end.
relativeSettableSettableSettable parameters can be customized for all following uses of the function with a set rule.
set rule.Whether the coordinates are relative to the previous point.
デフォルト値: false
例を表示
#curve(
stroke: blue,
curve.line((50pt, 0pt), relative: true),
curve.line((0pt, 50pt), relative: true),
curve.line((50pt, 0pt), relative: true),
curve.line((0pt, -50pt), relative: true),
curve.line((50pt, 0pt), relative: true),
)
quadElementElementElement functions can be customized with set and show rules.
set and show rules.Adds a quadratic Bézier curve segment from the last point to end, using
control as the control point.
例を表示
// Function to illustrate where the control point is.
#let mark((x, y)) = place(
dx: x - 1pt, dy: y - 1pt,
circle(fill: aqua, radius: 2pt),
)
#mark((20pt, 20pt))
#curve(
stroke: blue,
curve.move((0pt, 100pt)),
curve.quad((20pt, 20pt), (100pt, 0pt)),
)
control
The control point of the quadratic Bézier curve.
- If
autoand this segment follows another quadratic Bézier curve, the previous control point will be mirrored. - If
none, the control point defaults toend, and the curve will be a straight line.

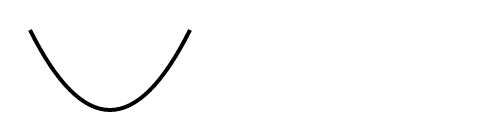

例を表示
#curve(
stroke: 2pt,
curve.quad((20pt, 40pt), (40pt, 40pt), relative: true),
curve.quad(auto, (40pt, -40pt), relative: true),
)
endRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters are specified in order, without names.
The point at which the segment shall end.
relativeSettableSettableSettable parameters can be customized for all following uses of the function with a set rule.
set rule.Whether the control and end coordinates are relative to the previous
point.
デフォルト値: false
cubicElementElementElement functions can be customized with set and show rules.
set and show rules.Adds a cubic Bézier curve segment from the last point to end, using
control-start and control-end as the control points.

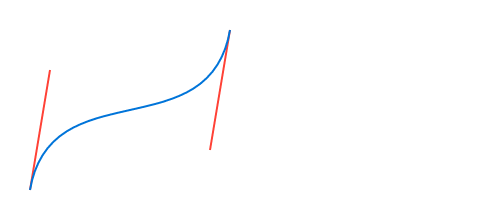

例を表示
// Function to illustrate where the control points are.
#let handle(start, end) = place(
line(stroke: red, start: start, end: end)
)
#handle((0pt, 80pt), (10pt, 20pt))
#handle((90pt, 60pt), (100pt, 0pt))
#curve(
stroke: blue,
curve.move((0pt, 80pt)),
curve.cubic((10pt, 20pt), (90pt, 60pt), (100pt, 0pt)),
)
control-start
The control point going out from the start of the curve segment.
-
If
autoand this element follows anothercurve.cubicelement, the last control point will be mirrored. In SVG terms, this makescurve.cubicbehave like theSoperator instead of theCoperator. -
If
none, the curve has no first control point, or equivalently, the control point defaults to the curve's starting point.

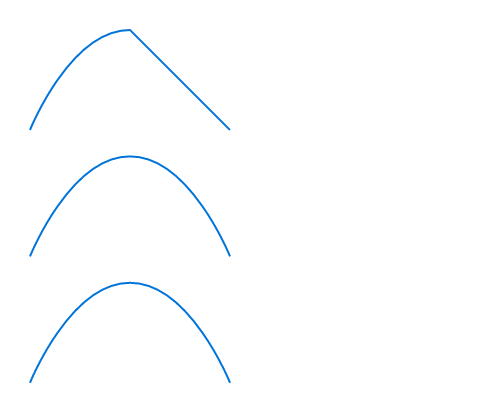

例を表示
#curve(
stroke: blue,
curve.move((0pt, 50pt)),
// - No start control point
// - End control point at `(20pt, 0pt)`
// - End point at `(50pt, 0pt)`
curve.cubic(none, (20pt, 0pt), (50pt, 0pt)),
// - No start control point
// - No end control point
// - End point at `(50pt, 0pt)`
curve.cubic(none, none, (100pt, 50pt)),
)
#curve(
stroke: blue,
curve.move((0pt, 50pt)),
curve.cubic(none, (20pt, 0pt), (50pt, 0pt)),
// Passing `auto` instead of `none` means the start control point
// mirrors the end control point of the previous curve. Mirror of
// `(20pt, 0pt)` w.r.t `(50pt, 0pt)` is `(80pt, 0pt)`.
curve.cubic(auto, none, (100pt, 50pt)),
)
#curve(
stroke: blue,
curve.move((0pt, 50pt)),
curve.cubic(none, (20pt, 0pt), (50pt, 0pt)),
// `(80pt, 0pt)` is the same as `auto` in this case.
curve.cubic((80pt, 0pt), none, (100pt, 50pt)),
)
control-end
The control point going into the end point of the curve segment.
If set to none, the curve has no end control point, or equivalently,
the control point defaults to the curve's end point.
endRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters are specified in order, without names.
The point at which the curve segment shall end.
relativeSettableSettableSettable parameters can be customized for all following uses of the function with a set rule.
set rule.Whether the control-start, control-end, and end coordinates are
relative to the previous point.
デフォルト値: false
closeElementElementElement functions can be customized with set and show rules.
set and show rules.Closes the curve by adding a segment from the last point to the start of the
curve (or the last preceding curve.move point).

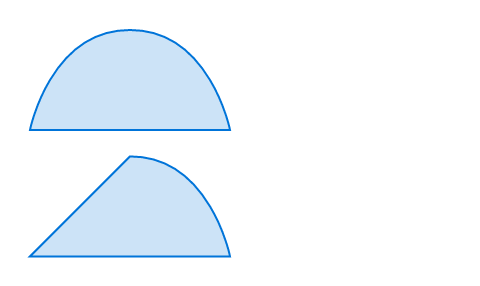

例を表示
// We define a function to show the same shape with
// both closing modes.
#let shape(mode: "smooth") = curve(
fill: blue.lighten(80%),
stroke: blue,
curve.move((0pt, 50pt)),
curve.line((100pt, 50pt)),
curve.cubic(auto, (90pt, 0pt), (50pt, 0pt)),
curve.close(mode: mode),
)
#shape(mode: "smooth")
#shape(mode: "straight")
modeSettableSettableSettable parameters can be customized for all following uses of the function with a set rule.
set rule.How to close the curve.
使用可能な文字列値:
smoothCloses the curve with a smooth segment that takes into account the control point opposite the start point.
straightCloses the curve with a straight line.
デフォルト値: "smooth"
