`path` Element

A path through a list of points, connected by Bezier curves.

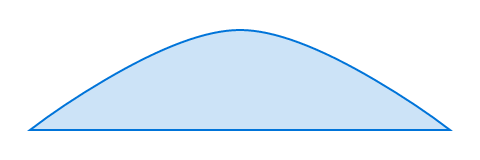

Example

#path(
  fill: blue.lighten(80%),
  stroke: blue,
  closed: true,
  (0pt, 50pt),
  (100%, 50pt),
  ((50%, 0pt), (40pt, 0pt)),
)

引数

path(

fill: none color gradient pattern, fill-rule: str, stroke: none auto length color gradient stroke pattern dictionary, closed: bool, array,

) -> content

`fill`

none color gradient pattern
Settable

How to fill the path.

When setting a fill, the default stroke disappears. To create a rectangle with both fill and stroke, you have to configure both.

Default:none

`fill-rule`

str
Settable

The drawing rule used to fill the path.

"non-zero"

Specifies that "inside" is computed by a non-zero sum of signed edge crossings.
"even-odd"

Specifies that "inside" is computed by an odd number of edge crossings.

Default:"non-zero"

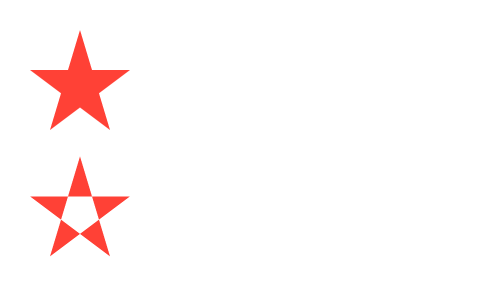

View example

// We use `.with` to get a new
// function that has the common
// arguments pre-applied.
#let star = path.with(
  fill: red,
  closed: true,
  (25pt, 0pt),
  (10pt, 50pt),
  (50pt, 20pt),
  (0pt, 20pt),
  (40pt, 50pt),
)

#star(fill-rule: "non-zero")
#star(fill-rule: "even-odd")

`stroke`

none auto length color gradient stroke pattern dictionary
Settable

How to stroke the path. This can be:

Can be set to none to disable the stroke or to auto for a stroke of 1pt black if and if only if no fill is given.

Default:auto

`closed`

bool
Settable

Whether to close this path with one last bezier curve. This curve will takes into account the adjacent control points. If you want to close with a straight line, simply add one last point that's the same as the start point.

Default:false

`vertices`

array
RequiredPositional

Variadic

The vertices of the path.

Each vertex can be defined in 3 ways:

A regular point, as given to the line or polygon function.
An array of two points, the first being the vertex and the second being the control point. The control point is expressed relative to the vertex and is mirrored to get the second control point. The given control point is the one that affects the curve coming into this vertex (even for the first point). The mirrored control point affects the curve going out of this vertex.
An array of three points, the first being the vertex and the next being the control points (control point for curves coming in and out, respectively).
