polygon
Element
Element functions can be customized with set and show rules.
set and show rules.A closed polygon.
The polygon is defined by its corner points and is closed automatically.

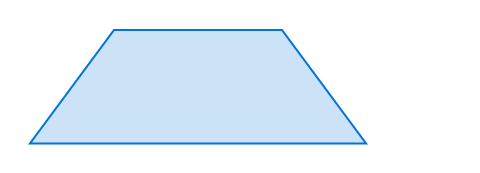

Example
#polygon(
fill: blue.lighten(80%),
stroke: blue,
(20%, 0pt),
(60%, 0pt),
(80%, 2cm),
(0%, 2cm),
)
引数
Parameters are the inputs to a function. They are specified in parentheses after the function name.
fill
How to fill the polygon.
When setting a fill, the default stroke disappears. To create a rectangle with both fill and stroke, you have to configure both.
Default:none
fill-rule
Settable
Settable parameters can be customized for all following uses of the function with a set rule.
set rule.The drawing rule used to fill the polygon.
See the path documentation for an example.
-
"non-zero"Specifies that "inside" is computed by a non-zero sum of signed edge crossings.
-
"even-odd"Specifies that "inside" is computed by an odd number of edge crossings.
Default:"non-zero"
stroke
How to stroke the polygon. This can be:
Can be set to none to disable the stroke or to auto for a
stroke of 1pt black if and if only if no fill is given.
Default:auto
vertices
RequiredPositional
Positional parameters are specified in order, without names.
Variadic
Variadic parameters can be specified multiple times.
The vertices of the polygon. Each point is specified as an array of two relative lengths.
定義
Functions and types and can have associated definitions. These are accessed by specifying the function or type, followed by a period, and then the definition's name.
regular
A regular polygon, defined by its size and number of vertices.

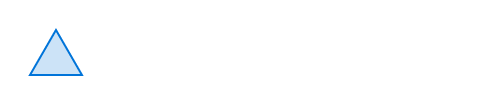

View example
#polygon.regular(
fill: blue.lighten(80%),
stroke: blue,
size: 30pt,
vertices: 3,
)
fill
How to fill the polygon. See the general polygon's documentation for more details.
stroke
How to stroke the polygon. See the general polygon's documentation for more details.
size
The diameter of the circumcircle of the regular polygon.
Default:1em
vertices
The number of vertices in the polygon.
Default:3
